Chest Drain 3 Bottle System

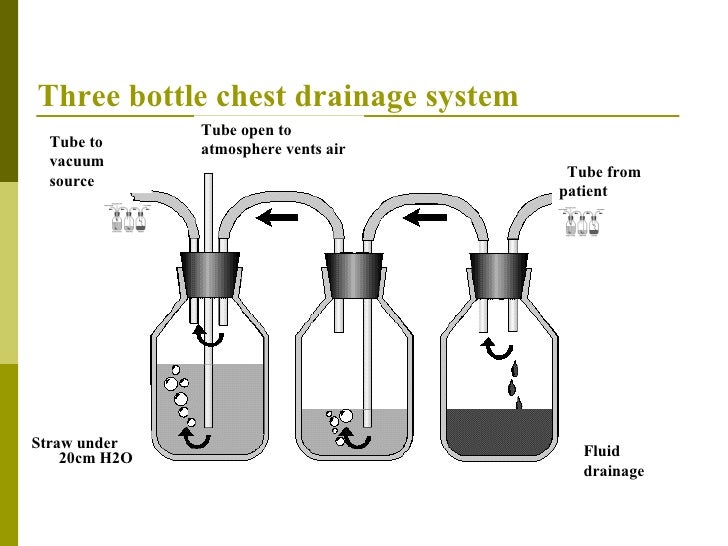

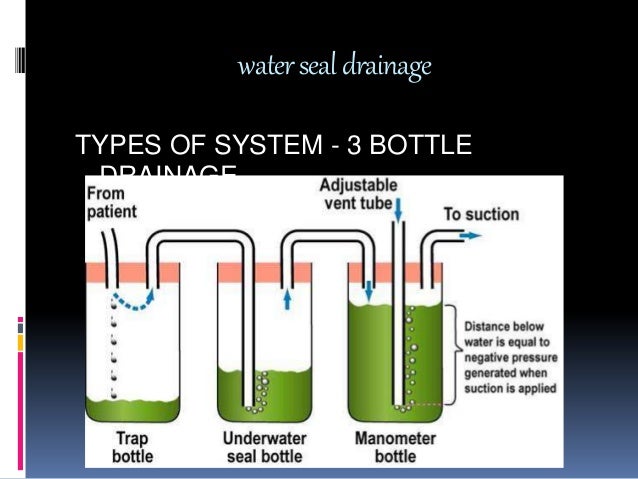

From the water seal bottle 2. 5 clear PVC tubing connects to thoracic catheter allows. 1 This system consists of the water-seal bottle the fluid collection bottle and a third bottle which controls the amount of suction applied. Passes into the bottle with its tip resting below an. Three Bottle System 3rd bottle suction control bottle eliminates risk of parenchymal lung injury from over-suction as many units uses wall-suction rather than dedicated pleural suction units Suction control bottle has 3 cannula 1. Recognize steps in setting up a chest drainage system. O In the 1-bottle system the chest drain is connected by collecting tubing to a tube approximately 3 cm under water the seal in the underwater-seal bottle while another vent tube is open to atmosphere.

This means if the tube is placed below 3 cm of water this can be interpreted as 3cmH2O of negative pressure.

Peel apart pouch and remove bottle. The classic three-bottle drainage system requires either external wall suction or gravity water seal drainage the former not being routinely recommended unless the latter is not effective. Recognize steps in setting up a chest drainage system. This means if the tube is placed below 3 cm of water this can be interpreted as 3cmH2O of negative pressure. Fill bottle with fluid to prime level noted on label. The traditional chest drainage system typically has three chambers Bauman.

2009 Chest Drainage System

Chest drain 3 bottle system. Always review what type of system is used in your agency and follow the agencys and the manufacturers directions for setup monitoring and use. Fluids will drain by gravity into the drainage chamber and will not spill back into the pleural space if the bottle is always kept below the level of the patients chest. Passes into the bottle with its tip resting below an.

In general a traditional chest tube drainage system will have these three chambers. Three types of underwater seal drainage systems are available. As long as.

Coupling with disposable chest drainage. It was apparently developed at the Massachusetts General Hospital in 1945. Drainage system of 3 chambers consisting of a water seal suction control and drainage collection chamber.

UWSD are designed to allow air or fluid to be removed from the pleural cavity while also preventing backflow of air or fluid into the pleural space. Crystal clear glass bottles allow for clear visualization from any angle. Remove red bayonet sealing cap by rotating anti-clockwise from CLOSE to OPEN position.

Gotta connect it to something. Peel apart pouch and remove bottle. Digital system from chest drain to atmosphere.

Fast set-up aiming an easier drain management Reduce risk of cross-contamination. The traditional chest drainage system typically has three chambers Bauman. This is the fanciest bottle of all and includes a manometer that allows you to deliver controlled suction through your chest tube.

Fill bottle with fluid to prime level noted on label. Fancy versions like the Atrium Oasis 3600 stocked at Mount Sinai also incorporate dials and.
